Introduction

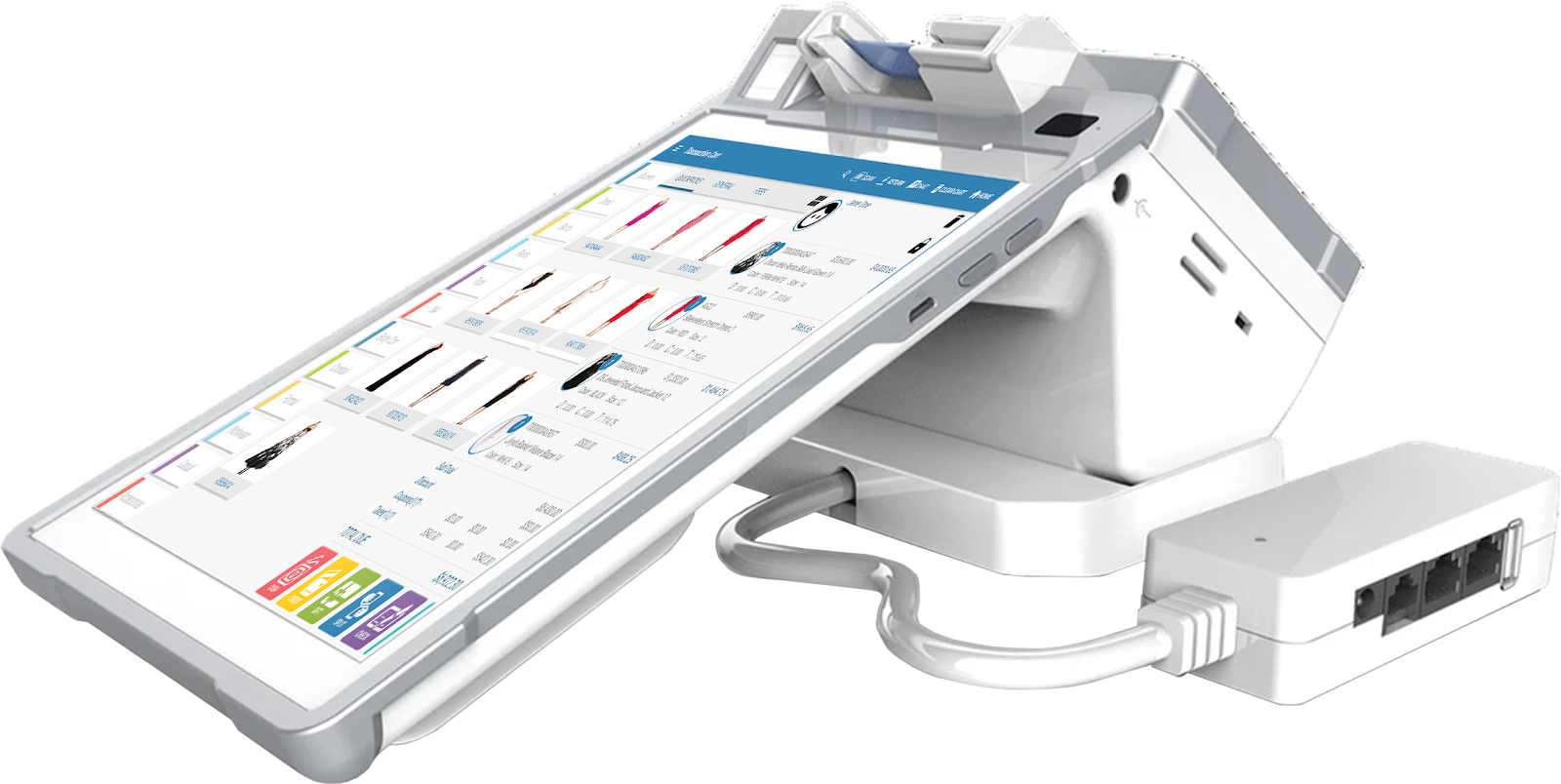

Pax E600 is an all-in-one terminal which transforms the shopping experience by allowing customers purchase over the counter, in close interaction with retail staff. The hand held E600 features a large yet compact display, fast printer and payment acceptance module allowing any type of transaction to be conducted while on the move.
Specifications
|
OS |
Android 7.1 |
|
Processor |
Quad-core Cortex® -AS3 11.4 GHz |
|
Memory |
1 GB DOR + 8 GB eMMC |
|
Display |
8-inch All Perspective IPS Display I 800 x 1280 Pixels HD Display Capacitive Touchscreen |
|
Physical Keys |
1 x ON / OFF Key 11 x Volume Up 11 x Volume Down |
|
Sensor |
Automatic Brightness Sensor I Built-in Ambient Light Detection |
|
Communications |
FDD-LTE /TDD-LTE I WCDMA /TD-SCOMA / EVDO I GSM / CDMA Bluetooth 4.1 I WiFi: 802.11 b/g/n, 2.4 GHz, Support Hotspot |
|
Cameras |
0.3 Mega pixel Camera for 1 D & 2 D Code Scanning 5-Megapixel Fixed Focal Front Camera |
|
Payment Module |
PCI & EMV Certified Payment Acceptor with FuII NFC Contactless 4.3-inch color touchscreen |
|
Battery |
7.2 V I 2600mAh Rechargeable Li-ion Battery |
|
Speaker |
1 x Speaker |
|
Location |
GPS I GALILEO I GLONASS I BEi DOU |
|
Printer |
2-inch Thermal Printer Head I Print Speed: 80 mm/s Paper Width: 58 mm I Diameter: 50 mm |
|
Host Peripheral Ports |
1 x SIM Card Slot 12 x SIM Card Slot (optional) 11 x Audio Jack 1 x Micro SD Card Slot, Supports up to 128 GB 11 x Micro USB 2.0 1 x DC Jack 11 x Fingerprint Module (optional) |
|
Base Peripheral Ports |
1 x Cash Drawer RJl 1 (24 V) 11 x RS232 I l x USBType A, USB HOST2.0 Pogo Contacts for the Host Power Supply and Communication 1 x DC Power Supply Interface 11 x LAN |
|
Indicators |
Power Indicator I Smart Card Indicator |
|
Adapter |
Input: 100 - 240 V AC, S0Hz/ 60Hz I Output: 9V DC, 2.SA |
|
Certifications |
PCI PTS S.x I CE I FCC I IC I UL I RoHs I EMV L 1 & L2 I Visa PayWave MasterCard Contactless I MasterCard TQM I Amex Express Pay lnterac Flash L2 I Discover D-PAS I CSEC I APCA I ABECS |
Product Description
How to Power ON/OFF the Pax E600 terminal?
Power ON: Press and hold the Power button for three seconds until the main screen displays normally.
Power OFF : Press and hold the Power button for three seconds until the shutdown menu appears, tap Shutdown and then “shutting...” appears. The terminal will be turned off after a few seconds.
How to Swipe a Magnetic Stripe Card ?
Place the magnetic stripe face down (keep the magnetic stripe card perpendicular to the main display), swipe card through the magnetic card slot at a constant speed.
How to Swipe an IC Card ?
Place the IC chip face down, insert the IC card into the card slot, and push it to the end.
How to Swipe a Contactless (NFC) Card ?
Place the contactless card on the center of the payment module screen.
How to Tear Print Paper ?
Press the print paper downward along the cutter and tear it leftward or rightward when getting close to the main display.
Pax E600 Charging Instructions
- Insert the external adapter or the base to charge the device.
- The Indicator lighting in red means the device is charging
- Green indicates charging completed.
- Indicator flashing red and green alternately means charging is abnormal.
How to Replace a SIM Card?
Open the battery cover on the bottom of the machine, remove the battery and follow the prompt to insert/take out the SIM card.
How to Replace an SD Card?
Open the battery cover on the bottom of the machine, remove the battery and follow the prompt to insert/take out the SD card.
