Settings allow users to change the functionality and behavior of the i360 Pro application.

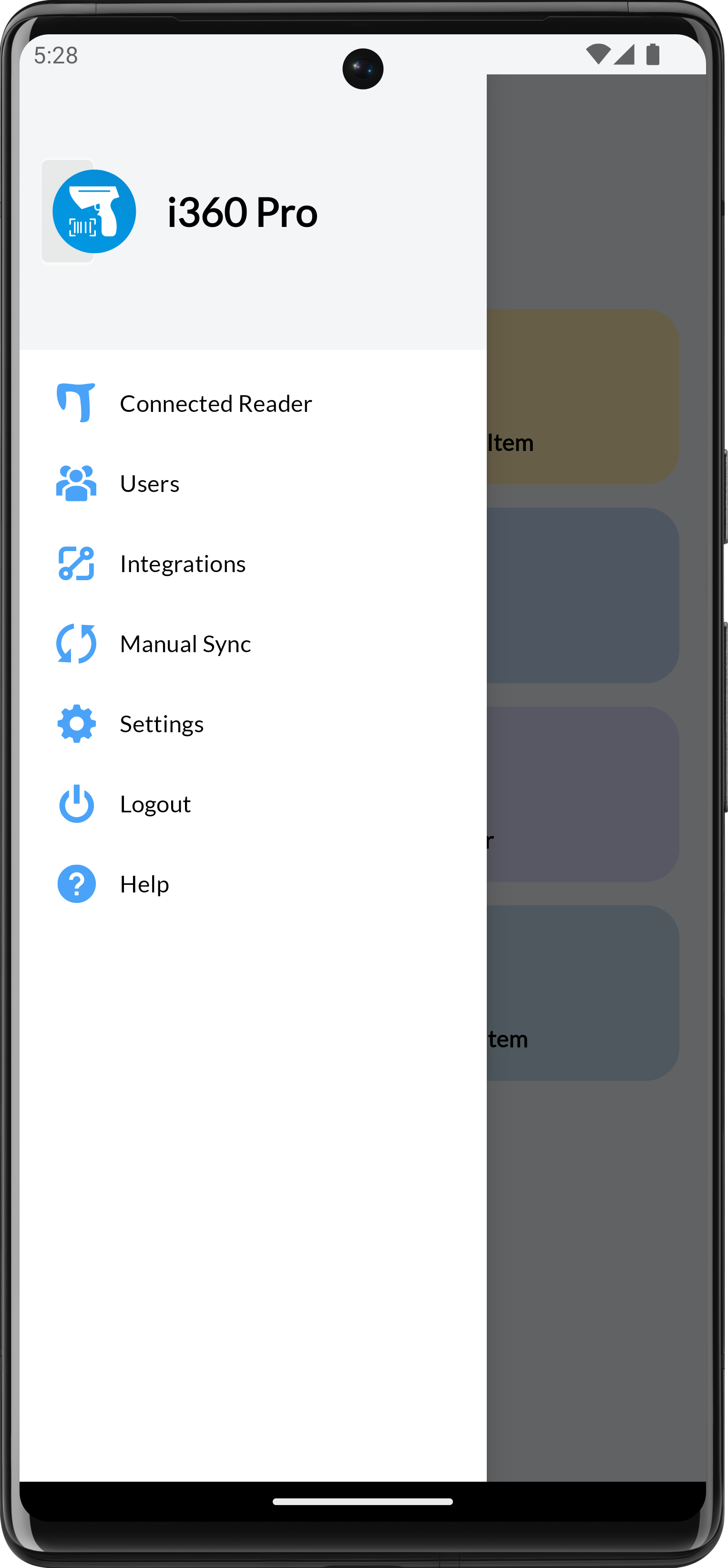

Navigate to the Settings icon on the top left corner of the home screen. This will display all the settings options available.
Connected Readers
This setting allows you to search for available readers and connect the sled.

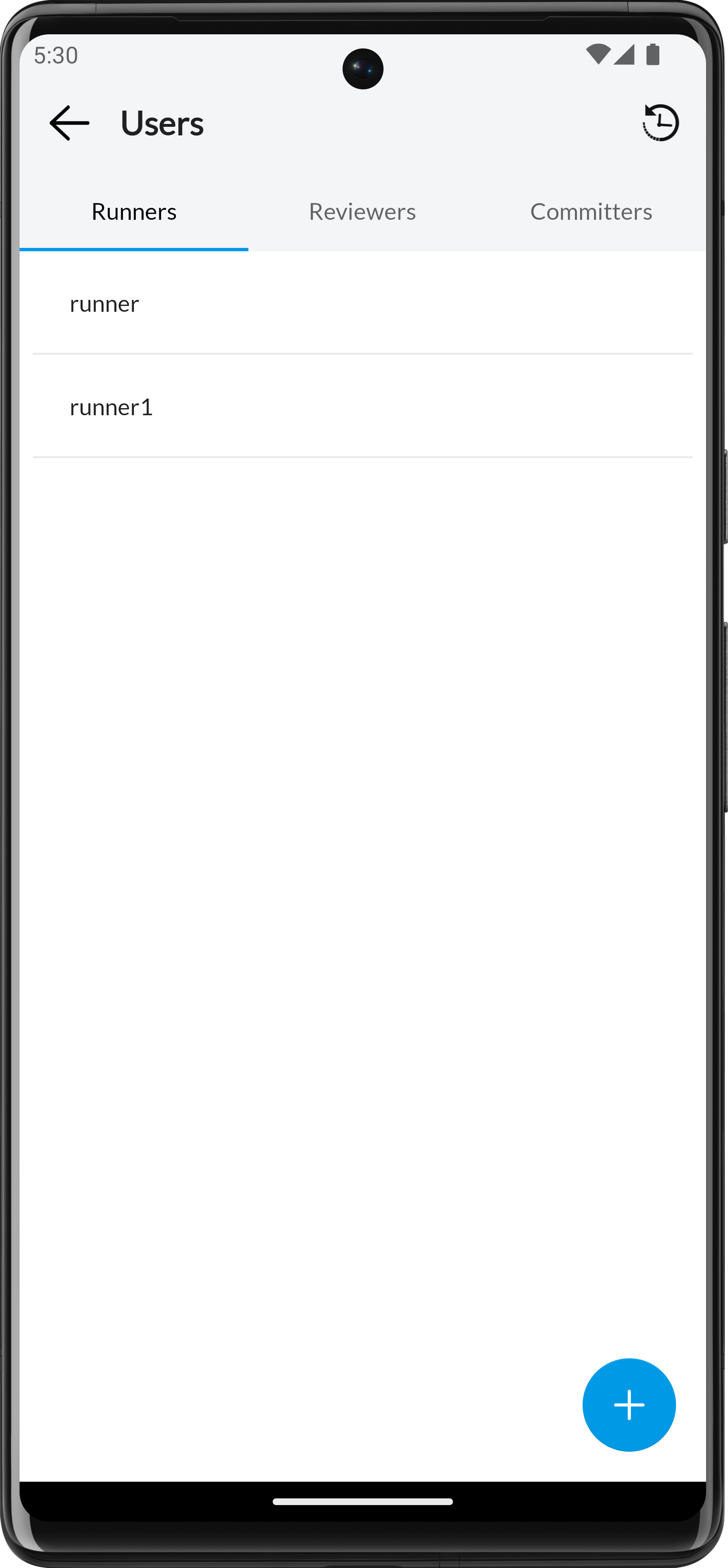

Users
This setting allows the creation of new Users for the application. There are mainly 3 types of users in the i360 application.
- Runners
- Reviewers
- Committers

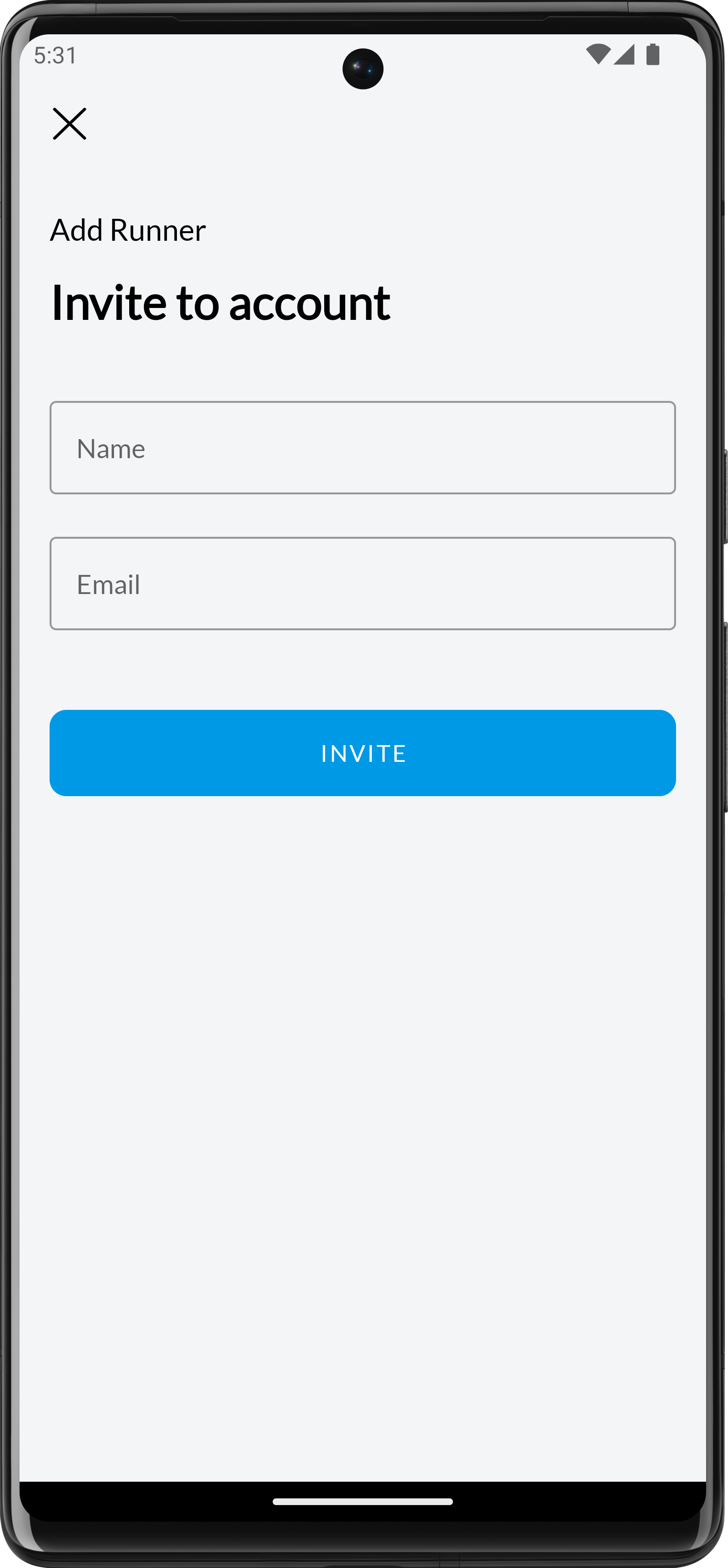

To create a new user click on the + button and enter the Name & email id of the users and send them an email invitation directly from the application.

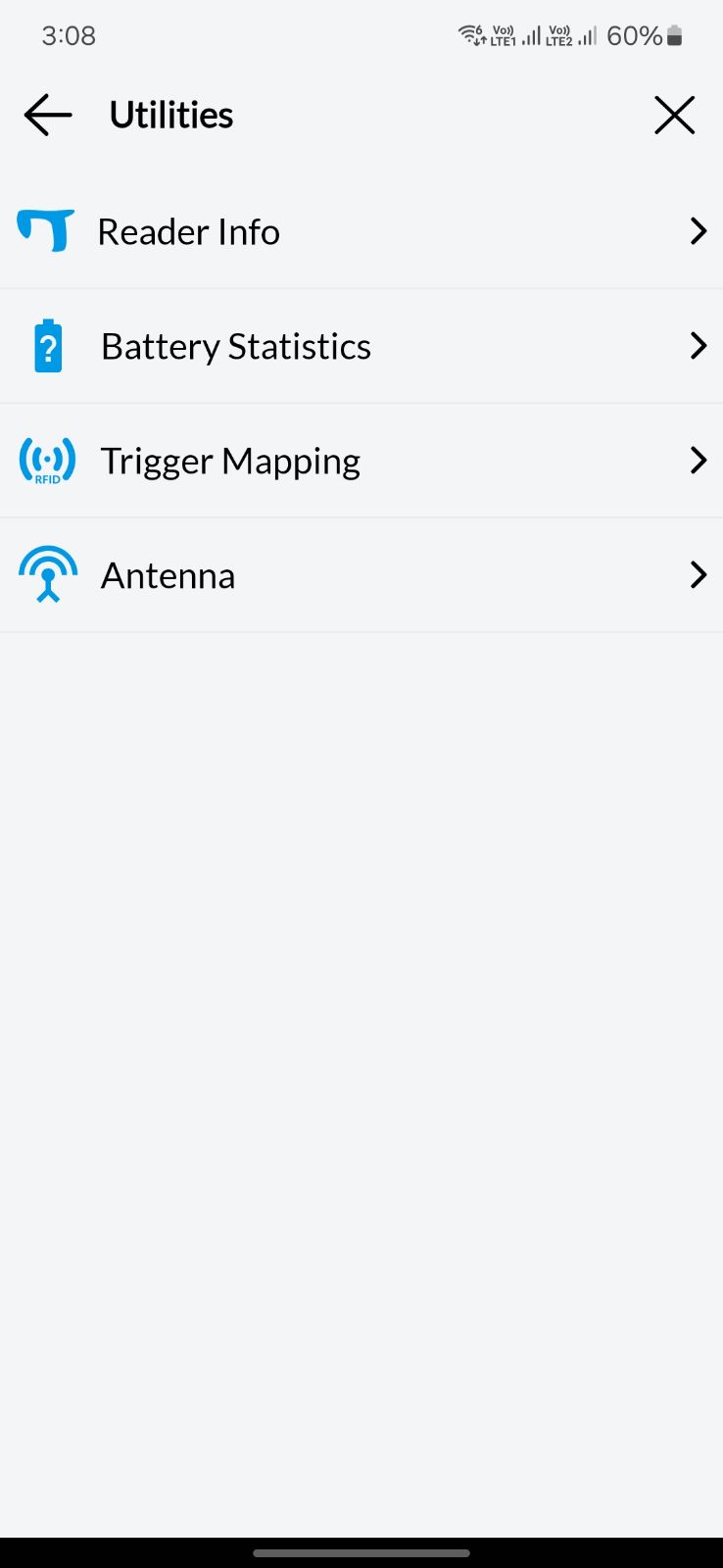

Utilities
The Utilities option in i360 Pro provides essential tools to manage and monitor the device's performance and configuration. This section includes information and controls for the reader, battery, trigger mapping, and antenna settings, helping merchants ensure their system operates at optimal levels.
Utilities>Reader Info
Model: Displays the model of the RFID reader being used.
Serial Number: Shows the unique serial number of the reader.
Utilities>Battery Statistics
Battery Level: Shows the current battery percentage of the device.
Battery Charging Status: Indicates whether the battery is charging or fully charged.
Utilities>Trigger Mapping
Upper Trigger: Allows merchants to map specific actions to the upper trigger button. Typically reserved for RFID scanning.
Lower Trigger: Allows merchants to map specific actions to the lower trigger button. Typically reserved for barcode scanning.
Utilities>Antenna Settings
Power Level (in tens of dBm): A text field where merchants can input the desired power level for the antenna. Range from 0 to 300 strength.
Link Profile: Configurable setting that controls communication between the reader and tags.
PIE (Pulse Interval Encoding): Allows adjustment of the encoding scheme used in tag communication.
Tari: Controls the pulse width, affecting the reader's performance in different environments.
Manual Sync
Manually syncs data with the backend. Syncs are automatically done, but this is a way to perform the sync on-demand - use if you made a modification that you want to be reflected immediately

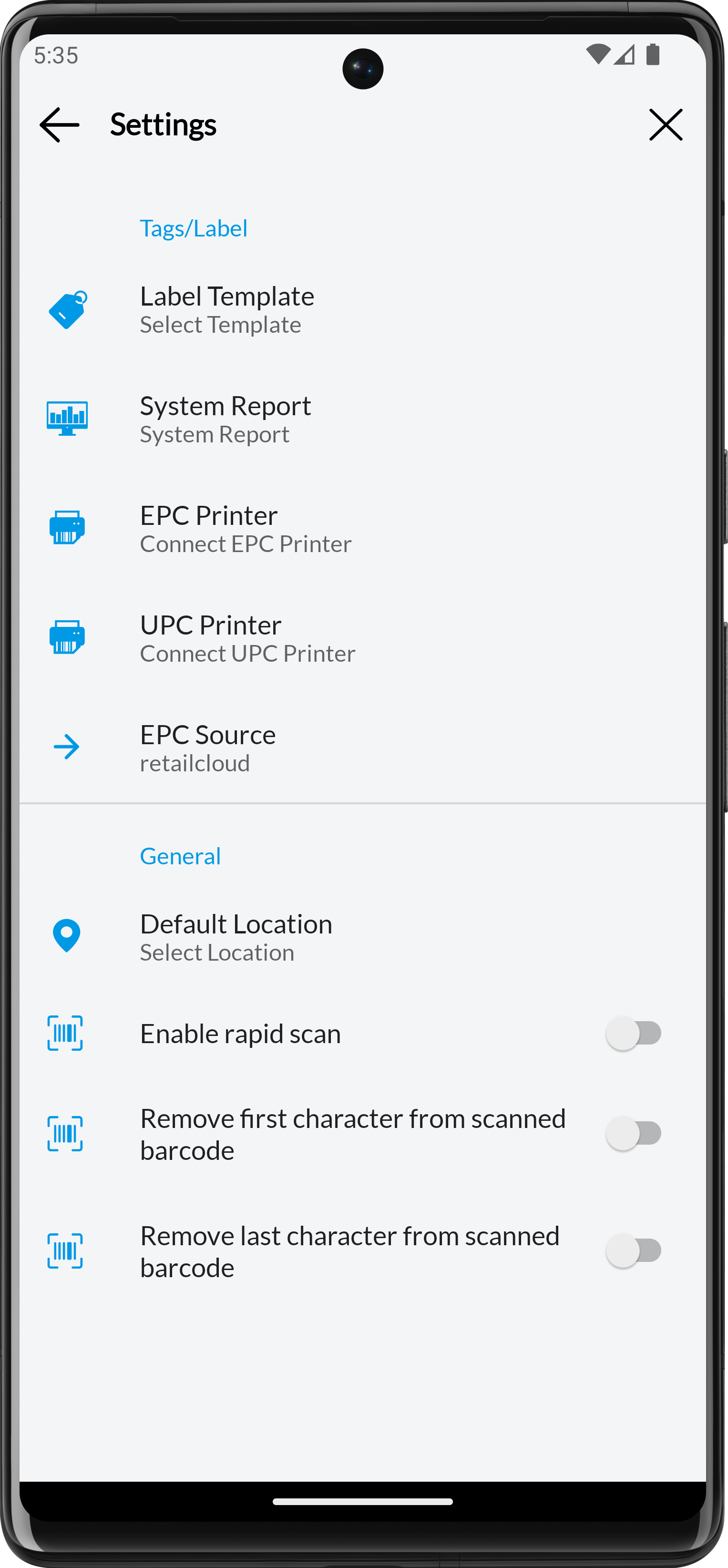

Settings
Tags/Label
Label Template: Allows merchants to select the template used for printing labels on products.
System Report: Provides merchants with a system report that details the current configuration, usage statistics etc.
Printer Configurations
Select the printer option (Bluetooth, TCP/IP). For Bluetooth printers, the app will auto-detect

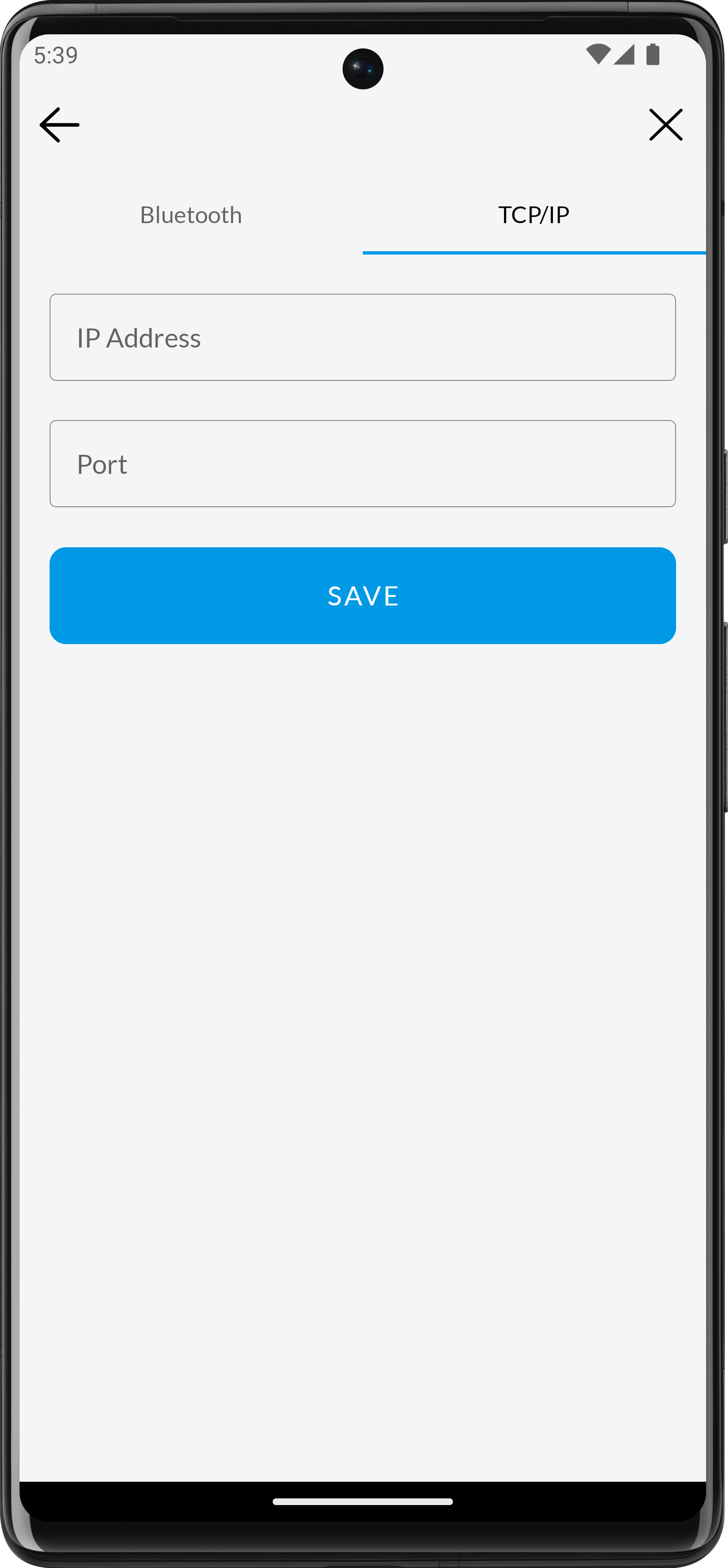

For manually adding printers, select TCP/IP and enter the IP address and port name.

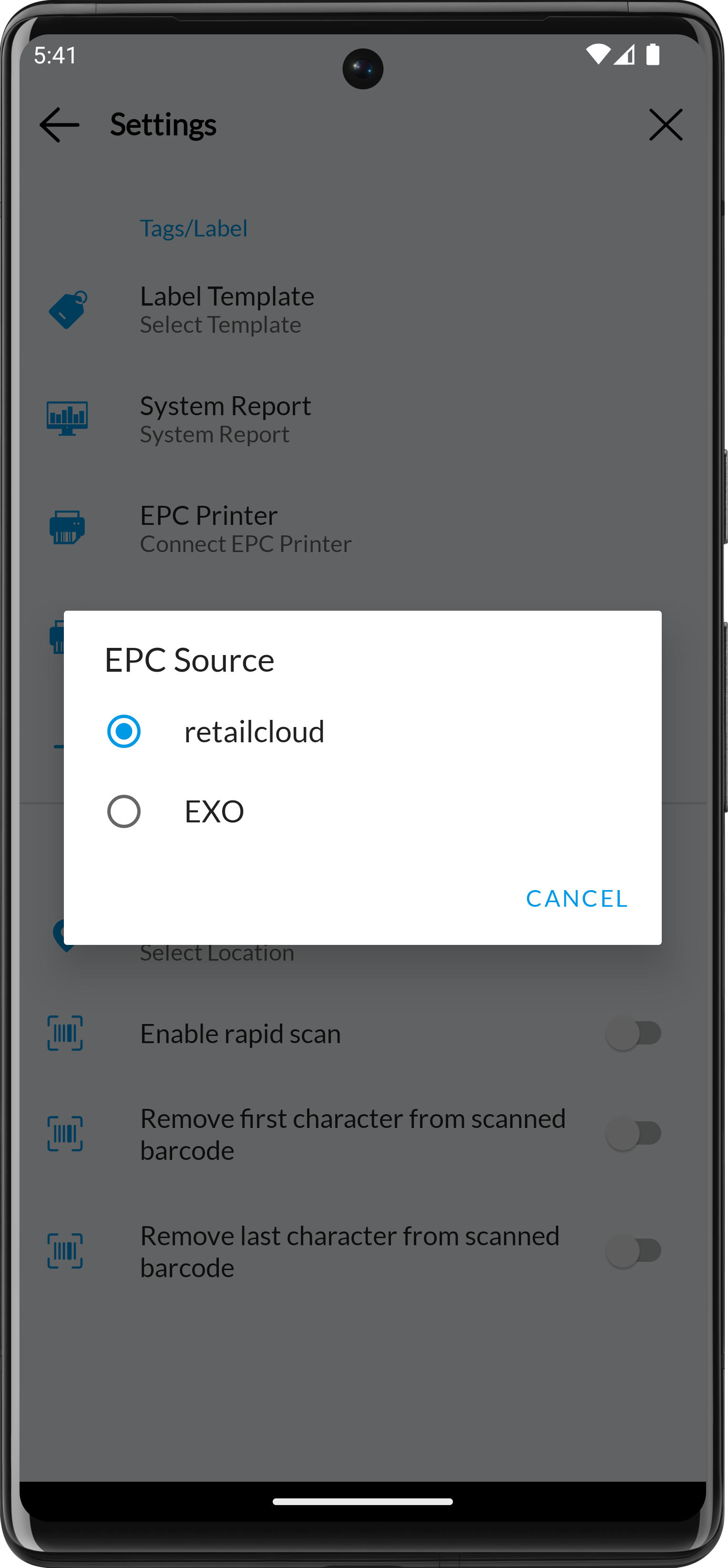

EPC Source
General

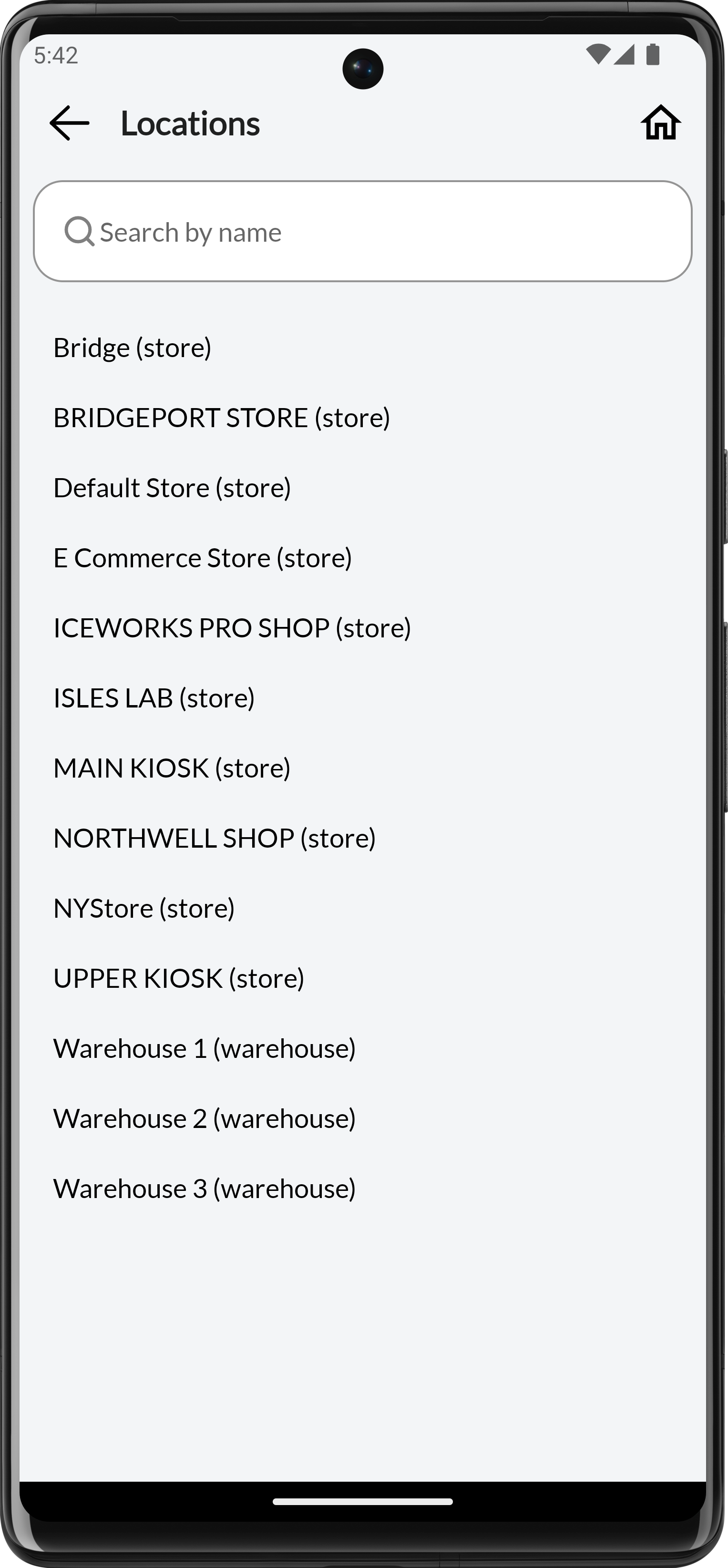

Default Location
Allows merchants to select and set a default location for their store or warehouse. This will be the default location selected for all inventory operations done on i360

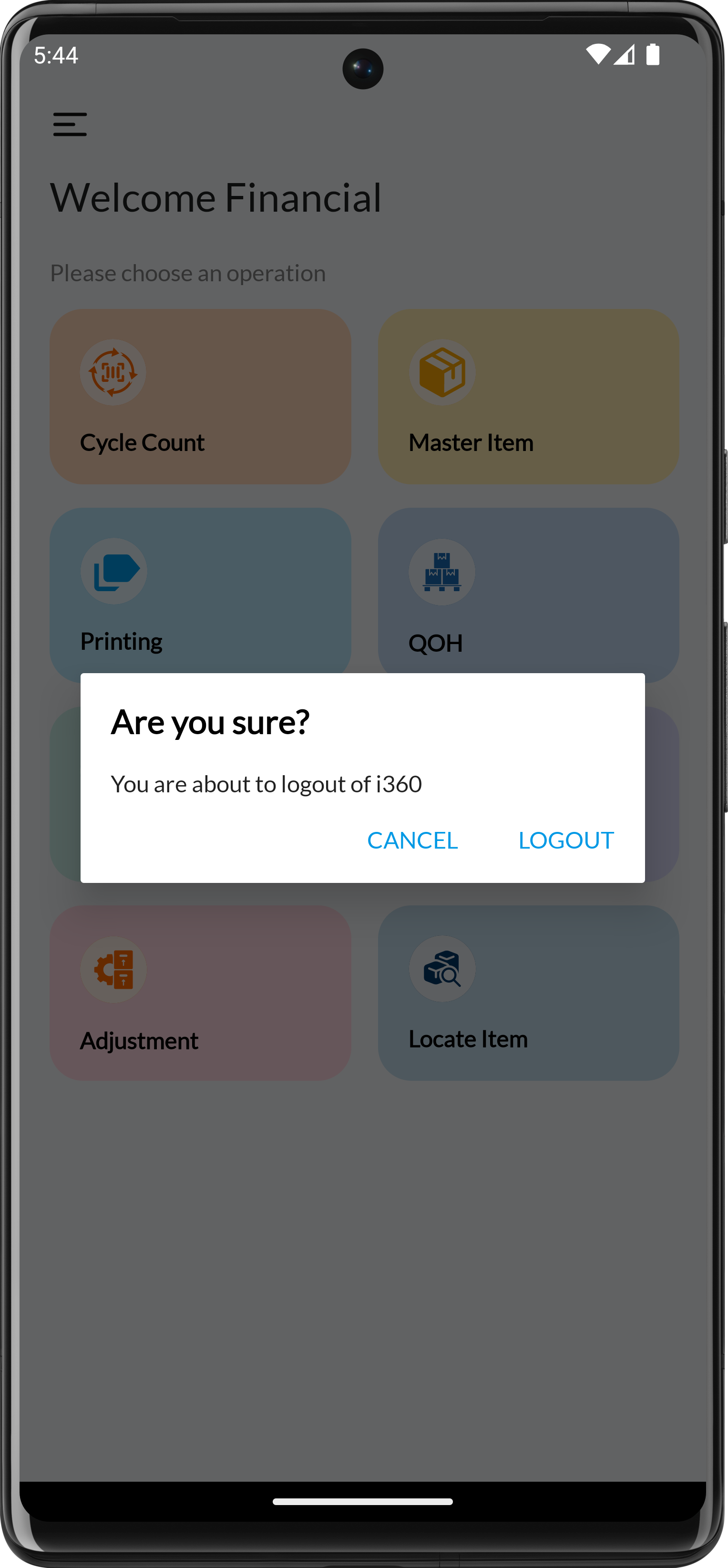

Logout
Logout to log out from the i360 Pro application.
